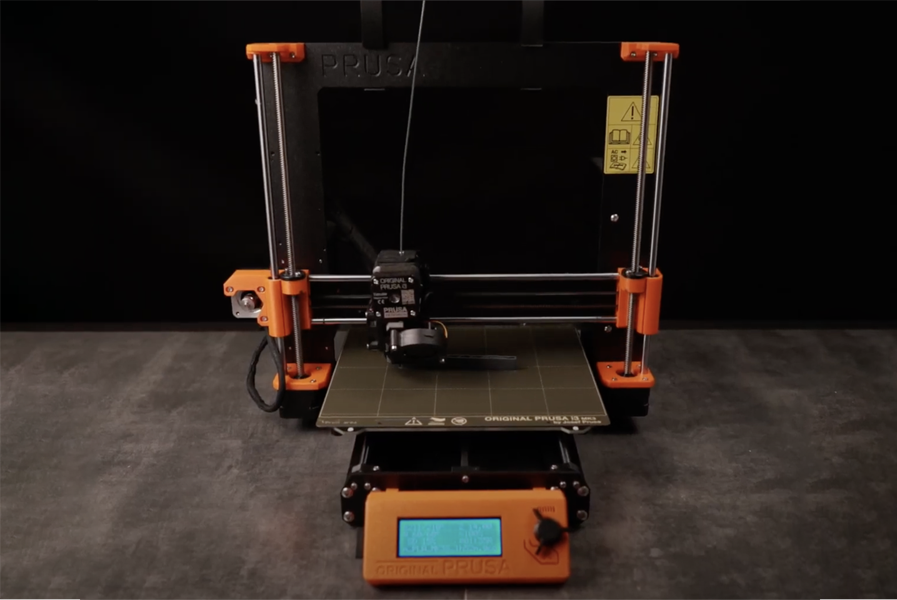

Any 200 × 200 mm printer · tested on Prusa i3 MK3S+
Printer: any FDM printer with a build plate of at least 200 × 200 mm. We test-print every part on a Prusa i3 MK3S+. A hardened nozzle and an enclosure are recommended for the nylon and carbon-fibre parts. ASA or PETG work as alternatives.
Settings: 0.2 mm layers. Each folder of files lists its infill and perimeters.
Filament, about 2.8 kg: black PLA 2,000 g · PLA in your body colour 500 g · PETG 120 g · Nylon AF80 100 g · Carbon PA11 30 g · white PLA 30 g · red PLA 10 g.
Non-printed parts (Drifter):
- 1 brushed 550 motor, ESC, metal-gear servo, 2.4 GHz transmitter and receiver, 2S LiPo (3500 mAh or more) with charger
- 4 × 90 mm tyres, 50 mm shocks, 10 bearings 6700ZZ, 2 timing belts 70XL37, 12 magnets
- clear 0.4 mm PVC sheet for the windows, servo extension, wires and connectors
- about 600 screws, nuts and pins, superglue and grease
Full parts list → · RC electronics in our shop →
Skills and tools: some experience with multi-part prints. You'll need 2 mm and 3 mm drill bits, a small hammer, a crimping tool, a craft knife and screwdrivers. No soldering: the motor wires use crimp terminals (the 4x4 adds WAGO connectors). If your battery plug doesn't match the ESC (e.g. XT60), use an adapter.
Specifications
| Scale | 1:10 |
| Length | 590 mm (23.23 in) |
| Width | 220 mm (8.66 in) |
| Height | 190 mm (7.5 in) |
| Wheelbase | 400 mm (15.75 in) |
| Tyres | 90 mm (3.54 in) |

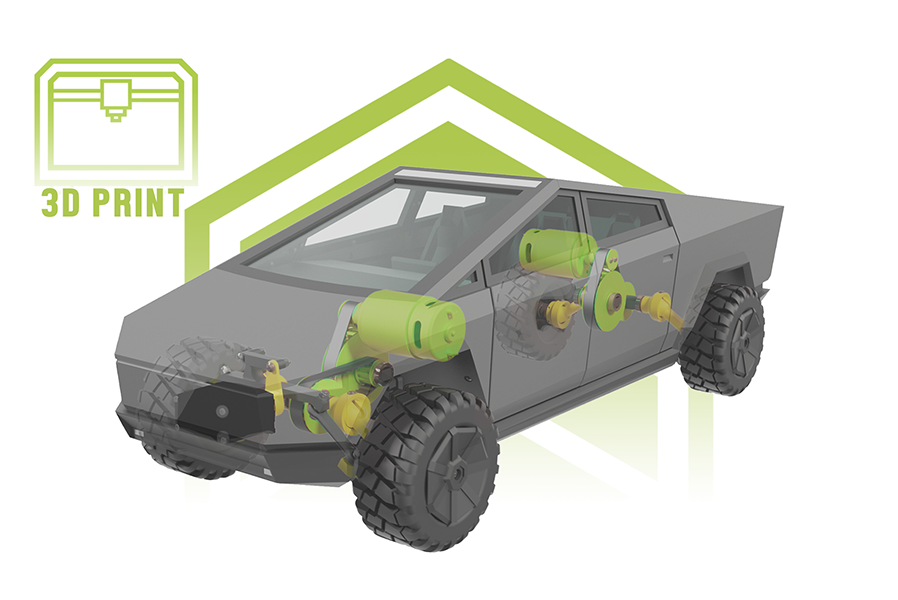

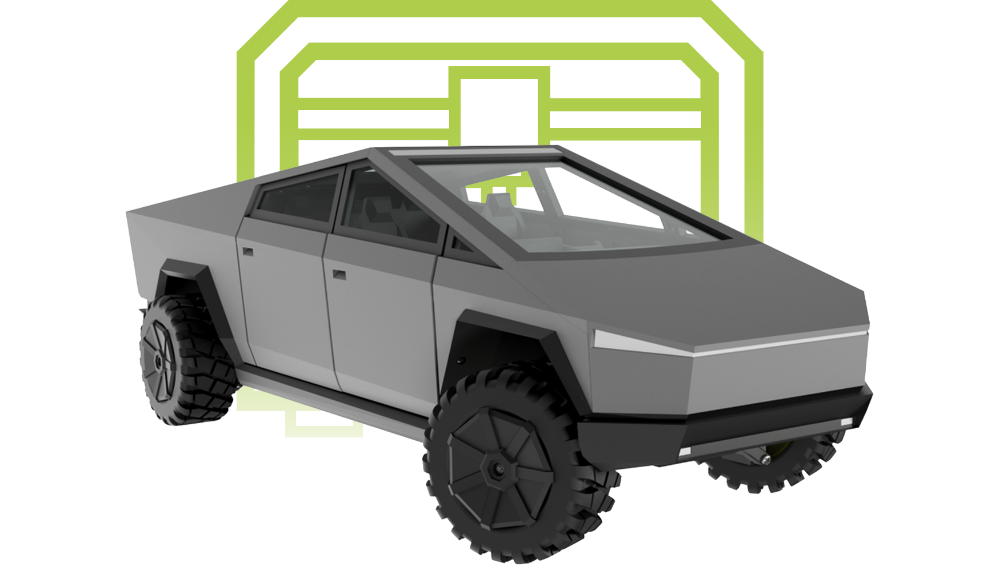

Drifter (these files): single motor, rear-wheel drive · weight 3.4 kg (7.5 lb) · max speed 20 km/h · 334 printed parts (screws and nuts not counted).
Sprinter 4x4 (upgrade files): dual motor, all-wheel drive · weight 3.9 kg (8.6 lb) · max speed 30 km/h.
